Cylinder 50cc 38mm Sachs 50/2 / 50/3 / 50/4 3V/4V alu Power1

38mm Cylinder Sachs 50/2,3,4 3V/4V

• Cylinder suitable for Sachs 50/2, 3, 4 3V / 4V
• For engines with an air-cooled cylinder
• Outer diameter cooling fins: 120 mm
• Hole spacing inlet: 32 mm
• Hole pattern cylinder stud: 40 x 50 mm
• For 28 mm exhaust manifold and one M40 x 1.5 mm exhaust nut.

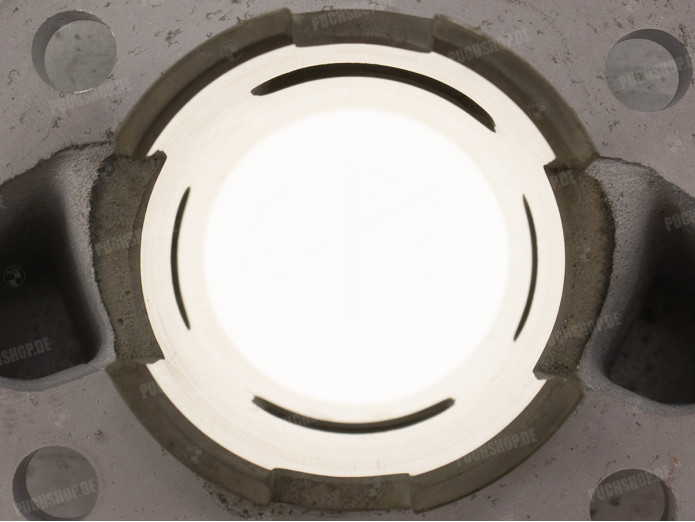

• Aluminium cylinder with nicasil wall, beautifully finished
• Comes complete as per pictures

We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp, this will considerably extend the life of the cylinder / piston.
