Cylinder 70cc OM PSR 6-port head de Klein tune Puch Maxi X30

PSR / de Klein pre tuned 70cc cylinder (45mm)

These cylinders from the brand PSR are high quality cylinders specially developed for Puchshop. PSR cylinders are known for their high quality and long life. This cylinder is pre-tuned by expert-tuner 'de Klein', so the maximum is obtained from this 70cc! The set comes standard with gaskets, cylinder head, piston, piston pin and piston rings.

• Aluminium cylinder with nicasil wall
• Pure 70cc pleasure :-)
• Intake and exhaust ports tuned
• Piston (piston pin 12mm) modified

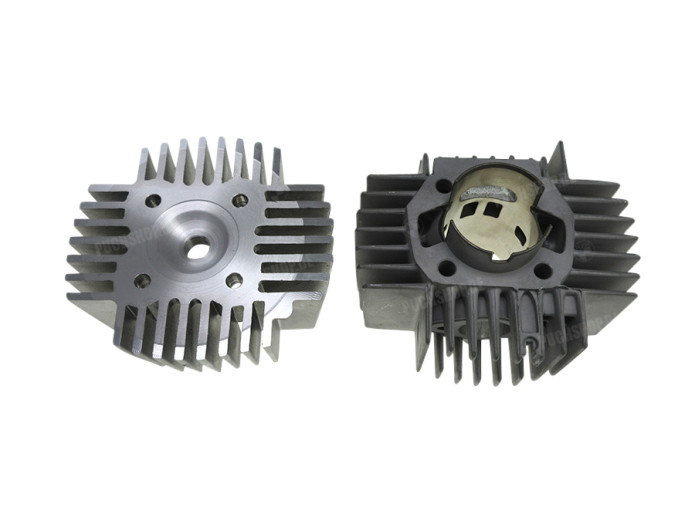

• Head optimized
• Old model cylinder and head

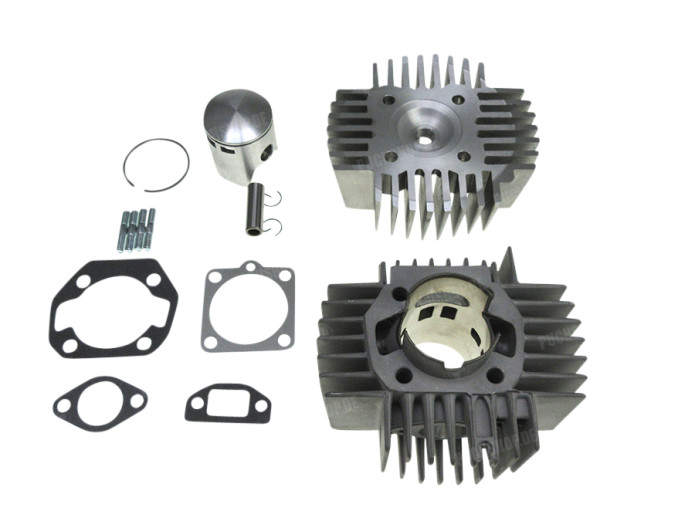

• Complete as shown
• Cylindersleeve outer diameter: 48mm

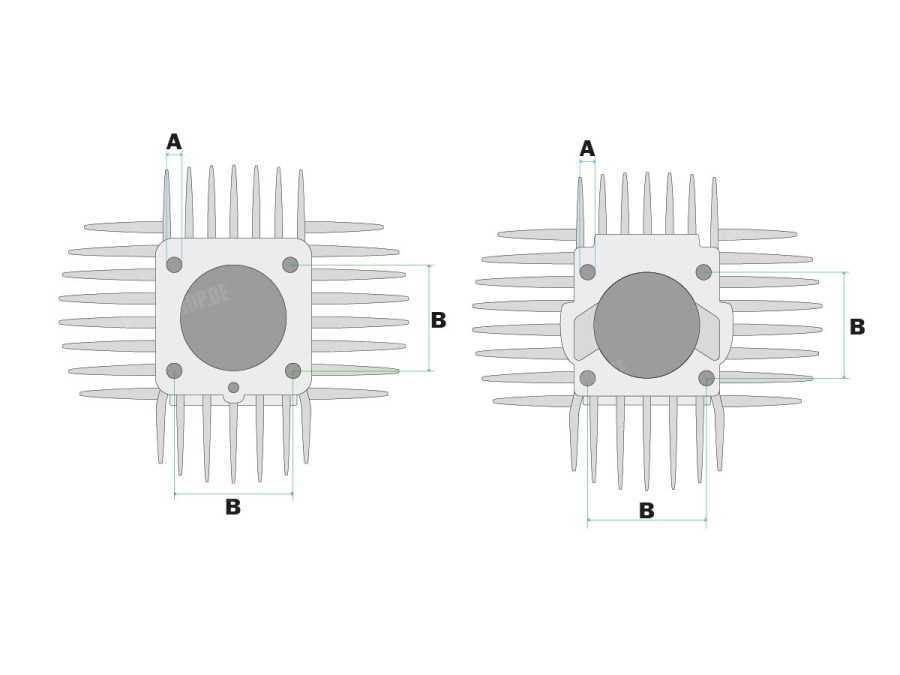

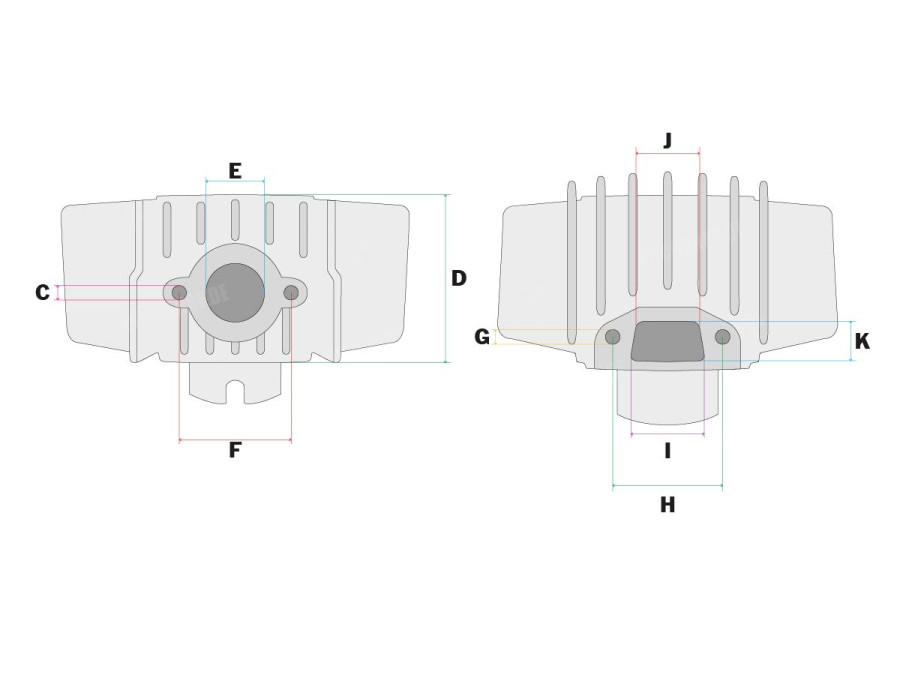

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 67mm
• E: 26mm
• F: 42mm
• G: M6
• H: 38mm
• I: 23mm
• J: 23mm
• K: 15mm

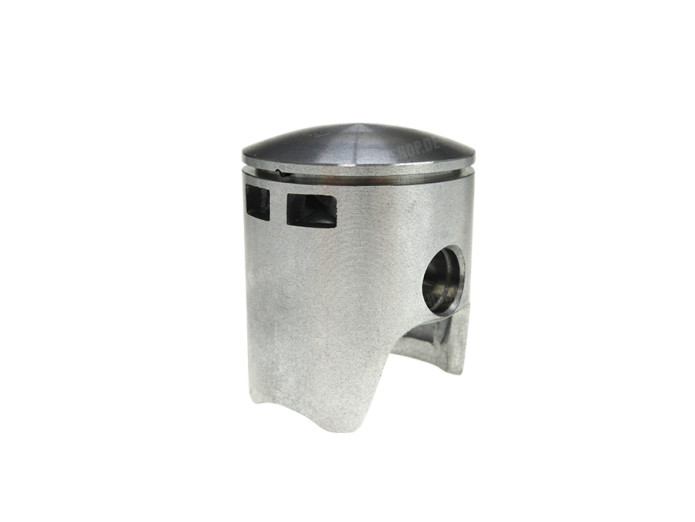

Measurements piston

• A: 5mm
• B: 22mm
• C: 27mm
• D: 12mm
